Product specifications

Download Jobsite Flooring spec sheet (PDF)

Brand: wedi
Product type: Building panel
Size: 4 × 5 ft × 3/4 in.
Core: Blue extruded polystyrene (XPS) closed-cell foam
Facing: Fiberglass mesh in cement-resin coating on both sides
Standards: ANSI A118.18, ANSI A118.10, IAPMO PS106 (in system); ICC-ES PMG 1189
R-value: 4.3 per inch (ASTM C518)
Surface burning: Class A (ASTM E84, FSI 20, SDI 70)
Tile load: Up to 23 lb/sq. ft. on walls, 15 lb/sq. ft. on ceilings
Temperature limits: -58 to +167°F once installed
Fasteners: wedi screws and washers, about 1 per sq. ft.; seams sealed with wedi Joint Sealant
Packaging: 4 sheets per box
Item number: US8000018
Made in: USA

Manufacturer documents

wedi Building Panel technical data sheet (wedi)wedi Building Panel safety data sheet (wedi)wedi Fundo curbed shower kit installation manual (wedi)

wedi Building Panel · JF-11250

wedi Building Panel 4 × 5 ft × 3/4 in.

Name: wedi Building Panel, 4 × 5 ft × 3/4 in.
Brand: wedi
SKU: JF-11250
Price: 98.01 USD

4 × 5 ft × 3/4 in. · Shower systems

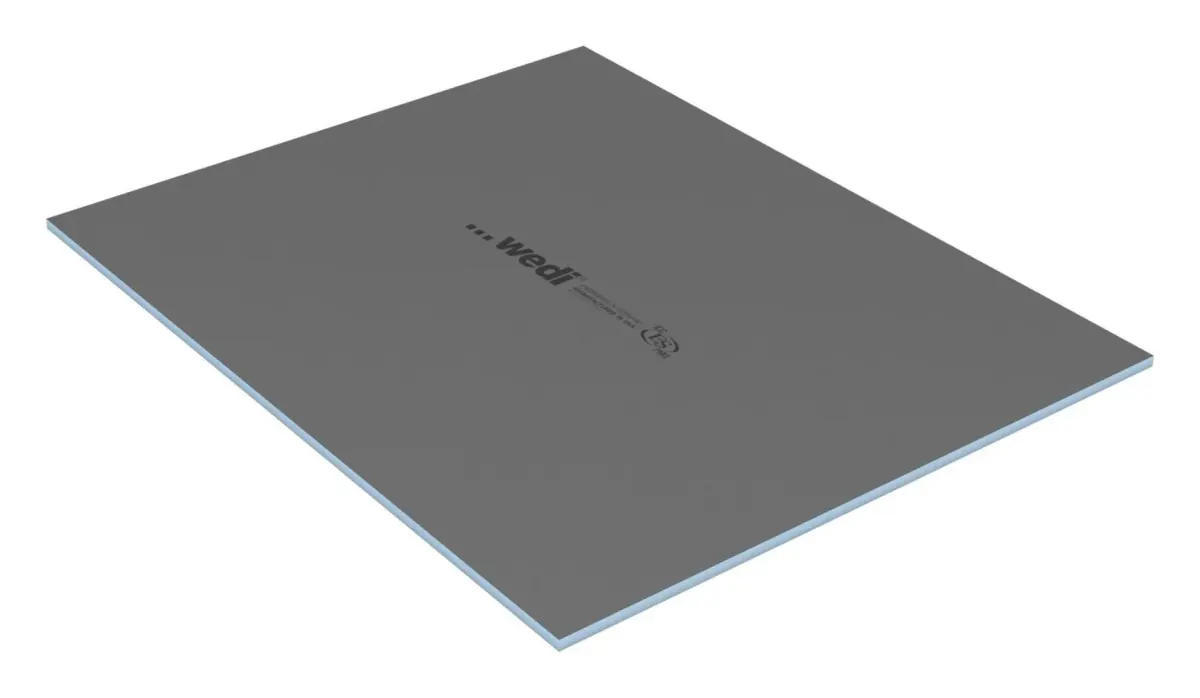

wedi Building Panel is a tile backer board with a blue XPS foam core covered on both faces by fiberglass mesh set in a cement-resin coating. The closed-cell core makes the board waterproof and insulating, it is light enough to cut cleanly with a utility knife, and thinset bonds to its textured face. The 3/4 in. sheet matches the perimeter thickness of wedi Fundo Curbless bases, so the bathroom floor can be built up level with the shower.

What it’s used for

Bathroom floors next to Fundo Curbless shower bases
Floors over wood or concrete subfloors
Thermal break and insulation under tile

REGULAR PRICE$98.01 / panel

Contractors and builders get trade pricing with an account. See trade accounts

Sold individually, priced per panel.
Minimum order: 1.

Special pallet pricing available

Availability: Confirm before ordering

Quantity

1 panel$98.01

Estimated lead time: 1–2 weeks. Delivery to Virginia, Washington, D.C., and Maryland. We’ll reach out with a quote that includes shipping after you request an order.
