JF-11246 · 2 × 4 ft × 1/8 in.
wedi Building Panel 2 × 4 ft × 1/8 in.
$37.25 / panel
2 × 4 ft × 1/8 in. · regular price
Special pallet pricing availableSold individually
Product specifications
Download Jobsite Flooring spec sheet (PDF)- Brand
- wedi
- Product type
- Building panel
- Size
- 4 × 5 ft × 1/4 in.
- Core
- Blue extruded polystyrene (XPS) closed-cell foam
- Facing
- Fiberglass mesh in cement-resin coating on both sides
- Standards
- ANSI A118.18, ANSI A118.10, IAPMO PS106 (in system); ICC-ES PMG 1189
- R-value
- 4.3 per inch (ASTM C518)
- Surface burning
- Class A (ASTM E84, FSI 20, SDI 70)
- Tile load
- Up to 23 lb/sq. ft. on walls, 15 lb/sq. ft. on ceilings
- Temperature limits
- -58 to +167°F once installed
- Fasteners
- wedi screws and washers, about 1 per sq. ft.; seams sealed with wedi Joint Sealant
- Weight
- 12 lb per sheet
- Packaging
- 25 sheets per pallet
- Item number
- US8000013
- Made in
- USA
wedi Building Panel · JF-11249
wedi Building Panel 4 × 5 ft × 1/4 in.
4 × 5 ft × 1/4 in. · Shower systems

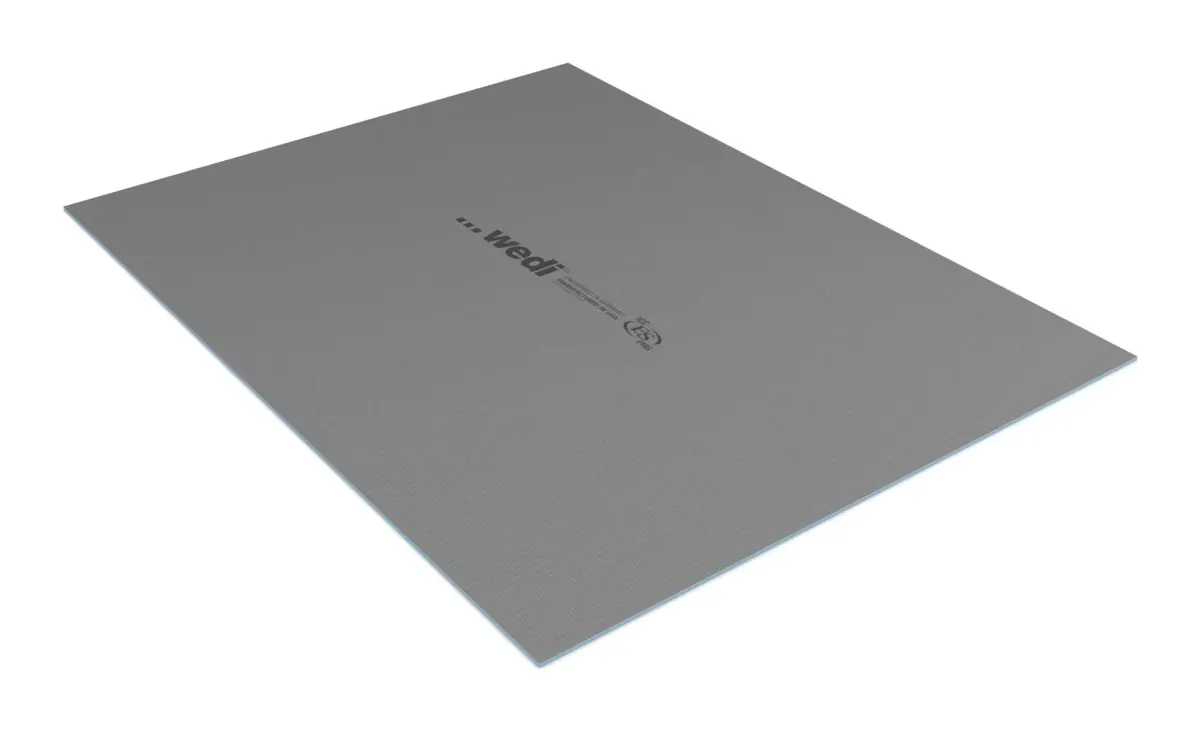

wedi Building Panel is a tile backer board with a blue XPS foam core covered on both faces by fiberglass mesh set in a cement-resin coating. The closed-cell core makes the board waterproof and insulating, it is light enough to cut cleanly with a utility knife, and thinset bonds to its textured face. The 1/4 in. sheet is wedi's floor and deck panel and is fastened with tabless washers on floors.
What it’s used for
- Floors over wood or concrete subfloors
- Floors with electric radiant heat
- Tub decks
- Thermal break over cold subfloors
REGULAR PRICE$81.13 / panel
Contractors and builders get trade pricing with an account. See trade accounts
Sold individually, priced per panel.
Minimum order: 1.
Special pallet pricing available
Contact us for pricing: 703-929-8455 or orders@jobsiteflooring.com.
Availability: Confirm before ordering
1 panel$81.13
Estimated lead time: 1–2 weeks. Delivery to Virginia, Washington, D.C., and Maryland. We’ll reach out with a quote that includes shipping after you request an order.
