ARDEXPhoto coming soon
JF-11384

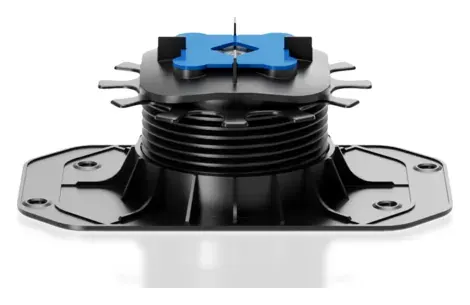

ARDEX TerraMaxx TSL Distance Holder
$17.68 / piece
regular price
Special pallet pricing availableSold individually
Product specifications
Download Jobsite Flooring spec sheet (PDF)- Brand
- ARDEX
- Product type
- Adjustable pedestal
- Size
- 58–75 mm
- Height range
- 58–75 mm
- ARDEX part no.
- UD 183
- Slope compensation
- Up to 9%, no tools
- Joint spacers
- Integrated 1/16 in. (2 mm); 3/16 in. (5 mm) with spacer attachment
- Load capacity
- 600 kg per pedestal
- Material
- Polypropylene
- Sound reduction
- Up to 30 dB (with TSL pad)
- Paver requirements
- Min. 12 × 12 in.; porcelain 3/4 in. (2 cm), stone 1-1/8 in. (3 cm)
- Warranty
- ARDEX Exterior Drainage System 5-year limited
ARDEX TerraMaxx TSL · JF-11389
ARDEX TerraMaxx TSL-L Pedestal 58–75 mm
58–75 mm · Polypropylene · Tools & accessories
A pre-assembled, height-adjustable TSL-L pedestal from the TerraMaxx raised-floor system for exterior porcelain and stone pavers, adjustable from about 2-3/8 to 2-15/16 in.. Its head corrects for slopes up to 9% without tools, built-in tabs set 1/16 in. joints, and rainwater drains away through the open joints.
What it’s used for
- Raised paver decks on balconies, roof terraces and patios
- 2 cm porcelain and 3 cm natural stone pavers
- Over pre-sloped exterior concrete or wood
- Concealing pipes, cables and drains under the deck
REGULAR PRICE$15.05 / piece
Contractors and builders get trade pricing with an account. See trade accounts
Sold individually, priced per piece.
Minimum order: 1.
Special pallet pricing available
Contact us for pricing: 703-929-8455 or orders@jobsiteflooring.com.
Availability: Confirm before ordering
1 piece$15.05
Estimated lead time: 1–2 weeks. Delivery to Virginia, Washington, D.C., and Maryland. We’ll reach out with a quote that includes shipping after you request an order.
